LC4120 - LCD Power Supply Switching IC

Sanyo

Datasheet Details

Part number	LC4120
Manufacturer	Sanyo
File Size	59.70 KB
Description	LCD Power Supply Switching IC

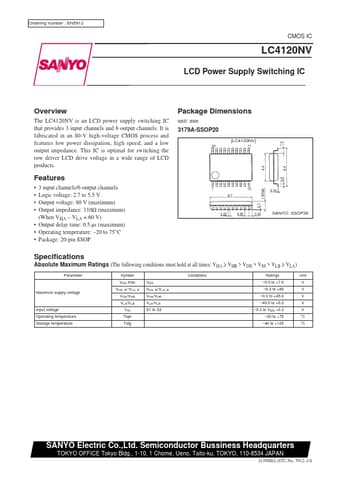

Datasheet	LC4120_SanyoSemiconDevice.pdf

low power dissipation, high speed, and a low output impedance. This IC is optimal for switching the row driver LCD drive voltage in a wide range of LCD products. Package Dimensions unit: mm 3179A-SSOP20 [LC4120NV] Features.
3 input channels/6 output channels Logic voltage: 2.7 to 5.5 V Output voltage: 80 V (maximum) Output impedance: 110Ω (maximum) (When VHA.
VLA = 60 V).
Output delay time: 0.5 µs (maximum).
Operating temperatur.
