ML414 Datasheet (Sanyo)

ML414, Cell

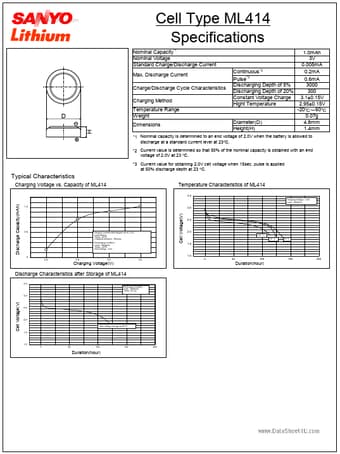

www.DataSheet4U.com Cell Type ML414 Specifications Nominal Capacity 1 Nominal Voltage Standard Charge/Discharge Current Max.

Discharge Current Charge/Discharge Cycle Characteristics Charging Method 1.0mAh 3V 0.005mA 0.2mA Continuous 2 0.6mA Pulse 3 Discharging Depth of 5% 3000 Discharging Depth of 20% 300 Constant Voltage Charge 3.1±0.15V Hight Temperature 2.95±0.15V -20℃～60℃ 0.07g Diameter(D) 4.8mm Height(H) 1.4mm D H Temperature Range Weight Dimensions 1 Nominal capacity
