STK404-230-E Datasheet - Sanyo

STK404-230-E-Sanyo.pdf

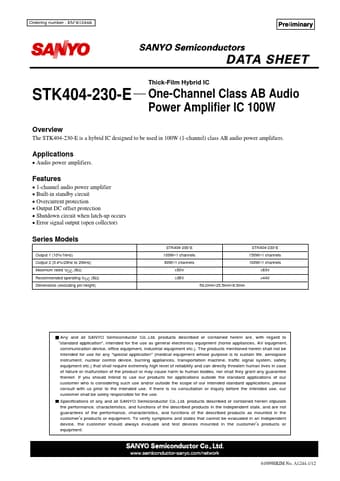

Preview of STK404-230-E PDF
STK404-230-E Datasheet Preview Page 2 STK404-230-E Datasheet Preview Page 3

Datasheet Details

Part number:

STK404-230-E

Manufacturer:

Sanyo

File Size:

353.41 KB

Description:

One-channel class ab audio power amplifier ic.

STK404-230-E, One-Channel Class AB Audio Power Amplifier IC

Pin No.

Pin name 1 STBY 2 ERROR 3 IN 4 NF 5 SUB/GND 6 -PRE 7 +PRE 8 DC 9 OC 10 -VCC 11 +VCC 12 OUT- 13 OUT+ Function I Standby terminal H: Operation mode, L: Standby mode O Error signal output in protection mode (open collector) H: Operation mode, L: Protection mode (shutdown) I Input signal

STK404-230-E Features

* 1-channel audio power amplifier

* Built-in standby circuit

* Overcurrent protection

* Output DC offset protection

* Shutdown circuit when latch-up occurs

* Error signal output (open collector) Series Models Output 1 (10%/1kHz) Output 2 (0.4%/20Hz to
