STK4171V - AF Power Amplifier

Sanyo

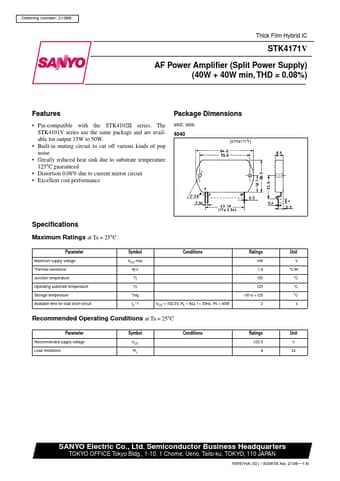

STK4171V Datasheet Preview — Preview of STK4171V PDF

Datasheet Details

Part number	STK4171V
Manufacturer	Sanyo
File Size	247.57 KB
Description	AF Power Amplifier
Datasheet	STK4171V_Sanyo.pdf

STK4171V Product details

Description

of External Parts No.2136 5/8 STK4171V C3, C4 Input ﬁlter capacitors A ﬁlter formed with R5 or R6 can be used to reduce noise at high frequencies. Used to block DC current. To reduce the pop noise at the time of application of power,

Features

Pin-compatible with the STK4102II series. The STK4101V series use the same package and are available for output 15W to 50W.
Built-in muting circuit to cut off various kinds of pop noise.
Greatly reduced heat sink due to substrate temperature 125°C guaranteed.
Distortion 0.08% due to current mirror circuit.
Excellent cost performance Package Dimensions unit: mm 4040 [STK4171V] Speciﬁcations Maximum Ratings at Ta = 25°C Parameter Maximum supply volt.
