STK4172II - AF Power Amplifier

Sanyo

STK4172II Datasheet Preview — Preview of STK4172II PDF

Datasheet Details

Part number	STK4172II
Manufacturer	Sanyo
File Size	255.90 KB
Description	AF Power Amplifier
Datasheet	STK4172II_Sanyo.pdf

STK4172II Product details

Description

of External Parts C1, C2 Input ﬁlter capacitors A ﬁlter formed with R3 or R4 can be used to reduce noise at high frequencies. Used to block DC current. To reduce the pop noise at the time of application of power, it is effective to increase C3,

Features

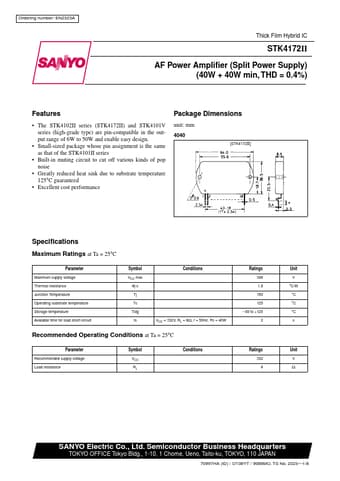

The STK4102II series (STK4172II) and STK4101V series (high-grade type) are pin-compatible in the output range of 6W to 50W and enable easy design.
Small-sized package whose pin assignment is the same as that of the STK4101II series.
Built-in muting circuit to cut off various kinds of pop noise.
Greatly reduced heat sink due to substrate temperature 125°C guaranteed.
Excellent cost performance Package Dimensions unit: mm 4040 [STK4172II] Speciﬁcati.
