SVC720 - Silicon Diffused Junction Type Varactor Diode

Product Overview

Sanyo

📥 Download Datasheet

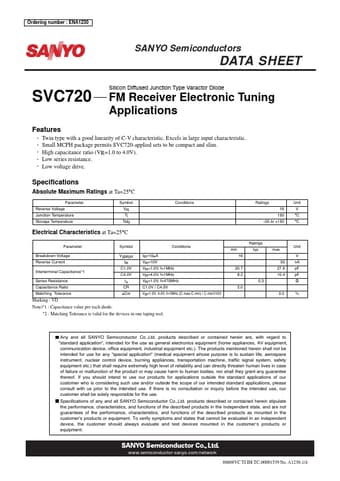

SVC720 Silicon Diffused Junction Type Varactor Diode by Sanyo - Datasheet Preview — Datasheet preview – SVC720

Datasheet Details

Part number	SVC720
Manufacturer	Sanyo
File Size	78.75 KB
Description	Silicon Diffused Junction Type Varactor Diode
Datasheet	SVC720 Datasheet
Additional preview pages of the SVC720 datasheet.

Product details

Features

Twin type with a good linearity of C-V characteristic. Excels in large input characteristic.
Small MCPH package permits SVC720-applied sets to be compact and slim.
High capacitance ratio (VR=1.0 to 4.0V).
Low series resistance.
Low voltage drive. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Reverse Voltage Junction Temperature Storage Temperature Symbol VR Tj Tstg Electrical Characteristics at Ta=25°C Conditions Parameter S.
