2N5620, 2N5614 Datasheet - SavantIC

2N5620 (2N5614 - 2N5620) Silicon NPN Power Transistors

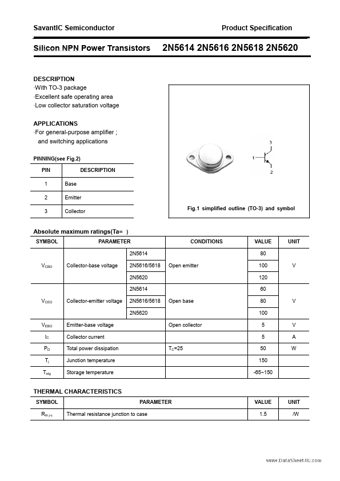

*With TO-3 package *Excellent safe operating area *Low collector saturation voltage APPLICATIONS *For general-purpose amplifier ; and switching applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ra.

2N5614_SavantIC.pdf

This datasheet PDF includes multiple part numbers: 2N5620, 2N5614. Please refer to the document for exact specifications by model.
2N5620 Datasheet Preview Page 2 2N5620 Datasheet Preview Page 3

Datasheet Details

Part number:

2N5620, 2N5614

Manufacturer:

SavantIC

File Size:

139.18 KB

Description:

(2n5614 - 2n5620) silicon npn power transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N5620, 2N5614.
Please refer to the document for exact specifications by model.
