2SA1069 - Silicon POwer Transistors

The 2SA1069 by SavantIC is a Silicon POwer Transistors. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SA1069 Silicon POwer Transistors datasheet (SavantIC).

Datasheet Details

Part number 2SA1069
Manufacturer SavantIC
File Size 131.15 KB
Description Silicon POwer Transistors
Datasheet download datasheet 2SA1069_SavantIC.pdf
Additional preview pages of the 2SA1069 datasheet.

2SA1069 Product details

Description

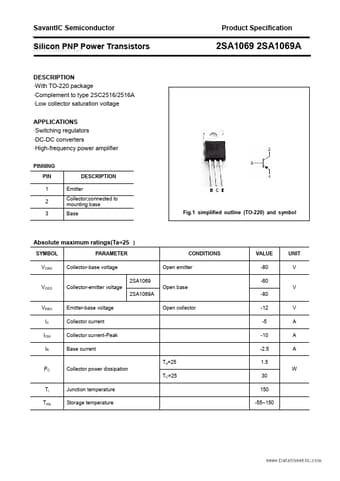

With TO-220 package Complement to type 2SC2516/2516A Low collector saturation voltage APPLICATIONS Switching regulators DC-DC converters High-frequency power amplifier PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO PARAMETER Collector-base voltage 2SA1069 VCEO Collector-emitter voltage 2SA1069A VEBO IC ICM IB Emitter-base voltage Collector curr
