2SA1074 - SILICON POWER TRANSISTOR

The 2SA1074 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SA1074 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SA1074
Manufacturer SavantIC
File Size 136.86 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1074_SavantIC.pdf
Additional preview pages of the 2SA1074 datasheet.

2SA1074 Product details

Description

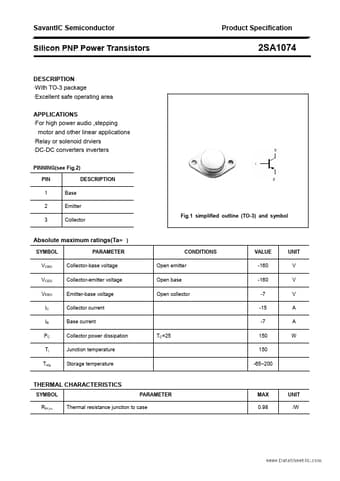

With TO-3 package Excellent safe operating area APPLICATIONS For high power audio ,stepping motor and other linear applications Relay or solenoid drviers DC-DC converters inverters PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Colle
