2SA1668, 2SA1667 Datasheet - SavantIC

2SA1668 SILICON POWER TRANSISTOR

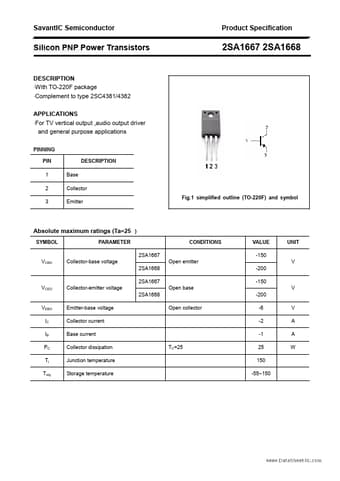

*With TO-220F package *Complement to type 2SC4381/4382 APPLICATIONS *For TV vertical output ,audio output driver and general purpose applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL P.

2SA1667_SavantIC.pdf

This datasheet PDF includes multiple part numbers: 2SA1668, 2SA1667. Please refer to the document for exact specifications by model.
2SA1668 Datasheet Preview Page 2 2SA1668 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1668, 2SA1667

Manufacturer:

SavantIC

File Size:

272.65 KB

Description:

Silicon power transistor.

Note:

This datasheet PDF includes multiple part numbers: 2SA1668, 2SA1667.
Please refer to the document for exact specifications by model.
