2SA626

Silicon POwer Transistors

SavantIC

2SA626 General Description

*With TO-3 package
*Wide area of safe operation
*High current capability:IC=-6A APPLICATIONS
*For audio frequency output applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO.

2SA626 Datasheet (136.48 KB)

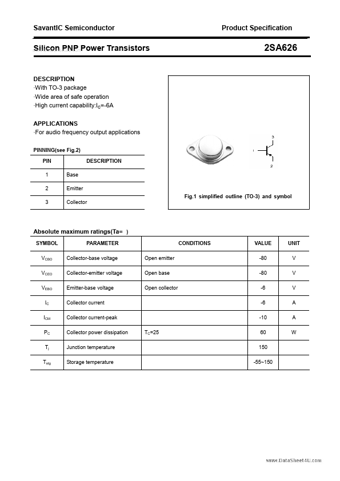

2SA626 Datasheet Preview — Preview of 2SA626 PDF

Datasheet Details

Part number:

2SA626

Manufacturer:

SavantIC

File Size:

136.48 KB

Description:

Silicon power transistors.
