2SA627 - Silicon POwer Transistors

Product Overview

📥 Download Datasheet

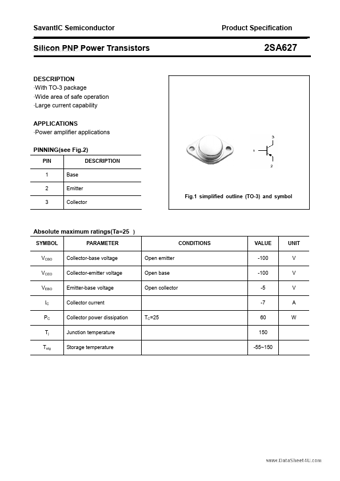

Datasheet preview – 2SA627

Datasheet Details

Part number 2SA627
Manufacturer SavantIC
File Size 135.91 KB
Description Silicon POwer Transistors
Datasheet download datasheet 2SA627 Datasheet
Additional preview pages of the 2SA627 datasheet.

Product details

Description

With TO-3 package Wide area of safe operation Large current capability APPLICATIONS Power amplifier applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25 Open emitter Open
