2SB1055 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

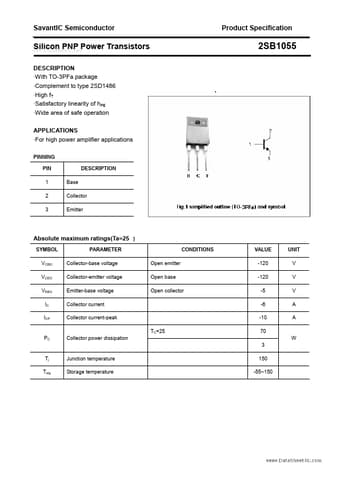

Datasheet preview – 2SB1055

Datasheet Details

Part number 2SB1055
Manufacturer SavantIC
File Size 180.86 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1055 Datasheet
Additional preview pages of the 2SB1055 datasheet.

Product details

Description

With TO-3PFa package Complement to type 2SD1486 High fT Satisfactory linearity of hFE Wide area of safe operation APPLICATIONS For high power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION 2SB1055 Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICP PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak TC=25 PC Collector power dissipation 3 Tj Tstg Junction tem
