2SB1007 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SB1007

Datasheet Details

Part number 2SB1007
Manufacturer SavantIC
File Size 131.91 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1007 Datasheet

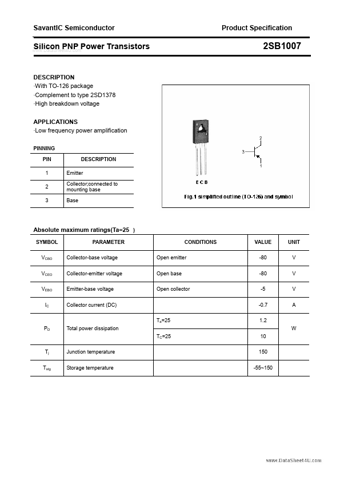

Additional preview pages of the 2SB1007 datasheet.

Product details

Description

With TO-126 package Complement to type 2SD1378 High breakdown voltage APPLICATIONS Low frequency power amplification PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Ta=25 PD Total power dissipation TC=25 Tj Tstg Junction temperature Storage temperature 10 150 -55~150 CONDITIONS Open em
