2SB1005 - PNP Transistor

2SB1005 Description

isc Silicon PNP Darlington Power Transistor .
High DC Current Gain- : hFE = 750(Min)@ IC= -1. Collector-Emitter Sustaining Voltage- : VCEO(SUS) = -50V(Min). With TO-220C package.

2SB1005 Applications

* Designed for audio frequency power amplifier applications ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -50 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous PC Collector Power D

📥 Download Datasheet

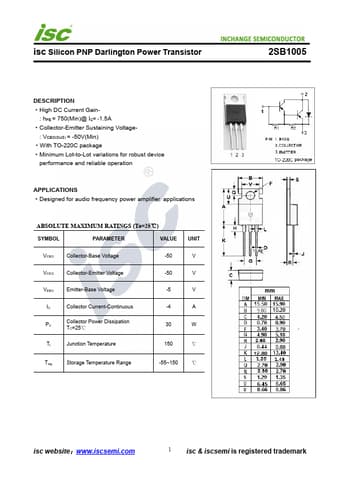

Preview of 2SB1005 PDF
