2SB1018 - PNP Transistor

2SB1018 Description

isc Silicon PNP Power Transistor .
Low Collector Saturation Voltage- : VCE(sat)= -0. High Current Capability- IC= -7A. Complement to Type 2SD1411. Minim.

2SB1018 Applications

* High current switching applications.
* Power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -80 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -7 A

📥 Download Datasheet

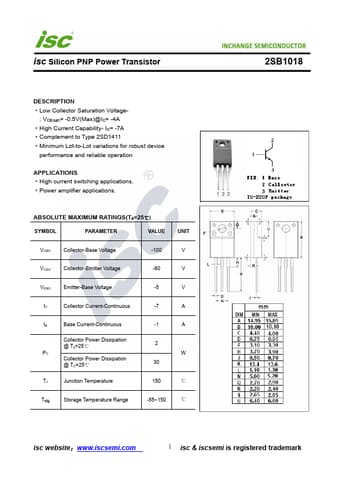

Preview of 2SB1018 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB1018
Manufacturer
INCHANGE
File Size
209.02 KB
Datasheet
2SB1018-INCHANGE.pdf
Description
PNP Transistor
