2SB1020 - PNP Transistor

2SB1020 Description

isc Silicon PNP Darlingtion Power Transistor .
High DC C urrent Gain- : hFE= 2000(Min. Low Collector Saturation Voltage- : VCE(sat)= -1. Good Linearity of hFE.

2SB1020 Applications

* High power switching applications.
* Hammer drive, pulse motor drive applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -100 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Cont

📥 Download Datasheet

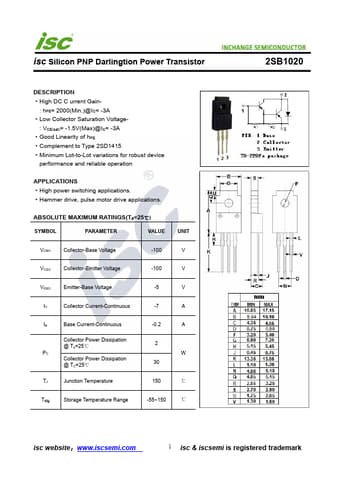

Preview of 2SB1020 PDF
