2SB1023 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SB1023

Datasheet Details

Part number 2SB1023
Manufacturer SavantIC
File Size 155.17 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1023 Datasheet
Additional preview pages of the 2SB1023 datasheet.

Product details

Description

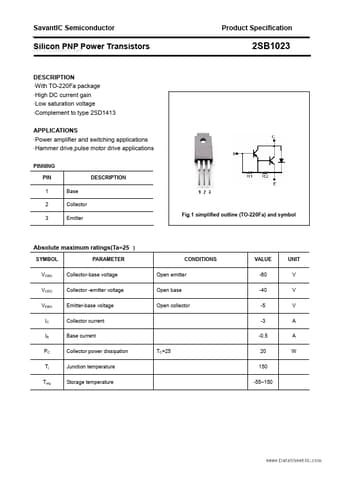

With TO-220Fa package High DC current gain Low saturation voltage Complement to type 2SD1413 APPLICATIONS Power amplifier and switching applications Hammer drive,pulse motor drive applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector -emitter voltage Emitter-base voltage Collector current Base
