2SB1028 Silicon PNP Transistor

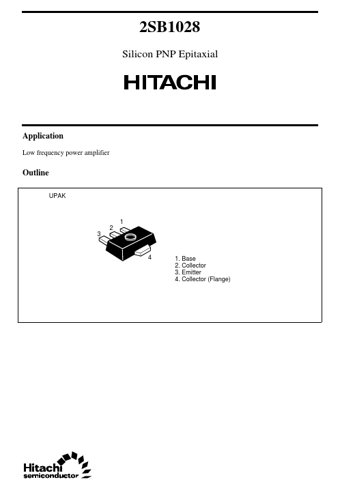

2SB1028 Silicon PNP Epitaxial Application Low frequency power amplifier Outline UPAK 1 3 2 4 1. Base 2. Collector 3. Emitter 4. Collector (Flange) 2SB1028 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg 2 1 Ratings 180 160 5

2SB1028_HitachiSemiconductor.pdf
