2SB1022 - SILICON POWER TRANSISTOR

Product Overview

SavantIC

Datasheet Details

Part number	2SB1022
Manufacturer	SavantIC
File Size	156.04 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SB1022 Datasheet
Additional preview pages of the 2SB1022 datasheet.

Product details

Description

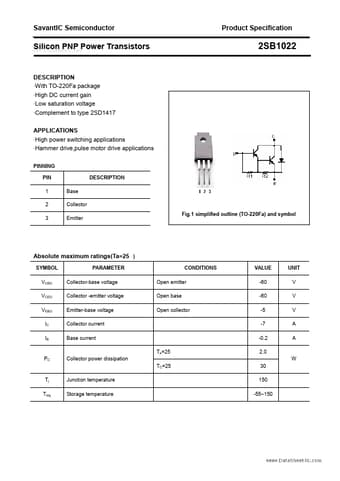

With TO-220Fa package High DC current gain Low saturation voltage Complement to type 2SD1417 APPLICATIONS High power switching applications Hammer drive,pulse motor drive applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PARAMETER Collector-base voltage Collector -emitter voltage Emitter-base voltage Collector current Base current Ta=25 PC Col
