2SB1020A Description

2SB1020A TOSHIBA Transistor Silicon PNP Triple Diffused Type (Darlington Power) 2SB1020A High-Power Switching Applications Hammer Drive, Pulse Motor .

2SB1020A Applications

* Hammer Drive, Pulse Motor Drive Applications Unit: mm
* High DC current gain: hFE = 2000 (min) (VCE =
* 3 V, IC =
* 3 A)
* Low saturation voltage: VCE (sat) =
* 1.5 V (max) (IC =
* 3 A)
* Complementary to 2SD1415A Absolute Maximum Ratings (Tc =

📥 Download Datasheet

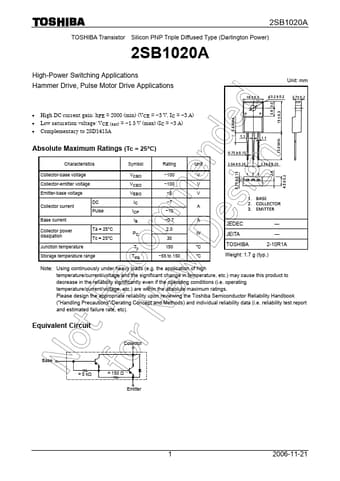

Preview of 2SB1020A PDF
