2SB1016A - Silicon PNP Transistor

📥 Download Datasheet

Datasheet preview – 2SB1016A

Datasheet Details

Part number 2SB1016A
Manufacturer Toshiba Semiconductor
File Size 249.65 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SB1016A Datasheet
Additional preview pages of the 2SB1016A datasheet.

📁 Similar Datasheet

  • 2SB1016 - SILICON PNP TRANSISTOR (Toshiba)
  • 2SB1016 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1016 - PNP Transistor (INCHANGE)
  • 2SB1010 - PNP Silicon Transistor (Rohm)
  • 2SB1011 - Silicon PNP triple diffusion planar type Transistor (Panasonic Semiconductor)
  • 2SB1012 - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1012K - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1015 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1015 - PNP Transistor (INCHANGE)
  • 2SB1017 - SILICON PNP TRANSISTOR (Toshiba)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

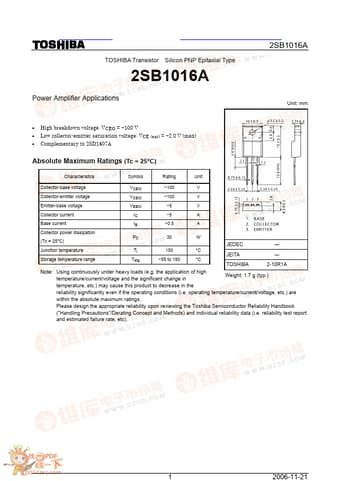

TOSHIBA Transistor Silicon PNP Epitaxial Type 2SB1016A Power Amplifier Applications 2SB1016A Unit: mm • High breakdown voltage: VCEO = −100 V • Low collector-emitter saturation voltage: VCE (sat) = −2.0 V (max) • Complementary to 2SD1407A Absolute Maximum Ratings (Tc = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO −100 V Collector-emitter voltage VCEO −100 V Emitter-base voltage VEBO −5 V Collector current IC −5 A Base current IB −0.5 A Collector power dissipation (Tc = 25°C) PC 30 W JEDEC ― Junction temperature Storage temperature range Tj 150 °C Tstg −55 to 150 °C JEITA TOSHIBA ― 2-10R1A Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in Weight: 1.
