2SB1011 - Silicon PNP triple diffusion planar type Transistor

Datasheet Summary

Features

  • High collector-base voltage (Emitter open) VCBO.
  • High collector-emitter voltage (Base open) VCEO.
  • Large collector power dissipation PC.
  • Low collector-emitter saturation voltage VCE(sat) φ 3.16±0.1 3.8±0.3 11.0±0.5 1.9±0.1.
  • Absolute Maximum Ratings Ta = 25°C Parameter Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emitter-base voltage (Collector open) Collector current Peak collector current Collector power dissipation J.

📥 Download Datasheet

Datasheet preview – 2SB1011

Datasheet Details

Part number 2SB1011
Manufacturer Panasonic Semiconductor
File Size 87.25 KB
Description Silicon PNP triple diffusion planar type Transistor
Datasheet download datasheet 2SB1011 Datasheet
Additional preview pages of the 2SB1011 datasheet.

📁 Similar Datasheet

  • 2SB1010 - PNP Silicon Transistor (Rohm)
  • 2SB1012 - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1012K - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1015 - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SB1015 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1015 - PNP Transistor (INCHANGE)
  • 2SB1015A - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SB1016 - SILICON PNP TRANSISTOR (Toshiba)
  • 2SB1016 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1016 - PNP Transistor (INCHANGE)
Other Datasheets by Panasonic Semiconductor
  • 2SB1030 - Silicon PNP Transistor
  • 2SB1030A - Silicon PNP epitaxial planer type Transistor
  • 2SB1036 - PNP Transistor
  • 2SB1050 - PNP Transistor
  • 2SB1054 - Silicon PNP Transistor
  • 2SB1063 - Silicon PNP Transistor
  • 2SB1070 - Silicon PNP epitaxial planar type Transistor
  • 2SB1070A - Silicon PNP epitaxial planar type Transistor

Full PDF Text Transcription

Click to expand full text

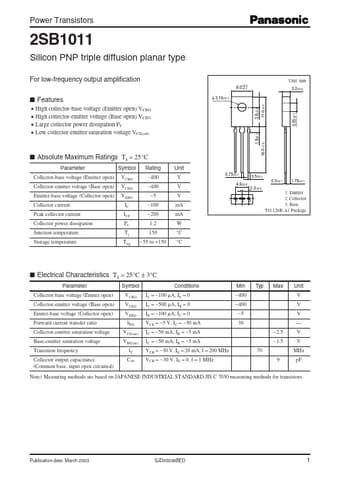

Power Transistors 2SB1011 Silicon PNP triple diffusion planar type For low-frequency output amplification 8.0+0.5 –0.1 Unit: mm 3.2±0.2 ■ Features • High collector-base voltage (Emitter open) VCBO • High collector-emitter voltage (Base open) VCEO • Large collector power dissipation PC • Low collector-emitter saturation voltage VCE(sat) φ 3.16±0.1 3.8±0.3 11.0±0.5 1.9±0.1 ■ Absolute Maximum Ratings Ta = 25°C Parameter Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emitter-base voltage (Collector open) Collector current Peak collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Rating −400 −400 −5 −100 −200 1.2 150 −55 to +150 Unit V V V 1 2 3 0.75±0.1 4.6±0.2 0.5±0.1 0.5±0.1 2.3±0.
