2SB1015 - Silicon PNP Transistor

Datasheet Summary

Features

  • . Low Collector Saturation Vol tage : VC E(sat)=-1.0V(Max. ) at Ic=-3A, I B=-0.3A . Collector Power Dissipation : Pc=25W (Tc=25°C) . Complementary to 2SD1406.

📥 Download Datasheet

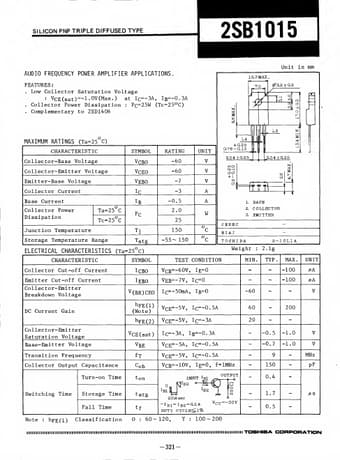

Datasheet preview – 2SB1015

Datasheet Details

Part number 2SB1015
Manufacturer Toshiba Semiconductor
File Size 90.27 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SB1015 Datasheet
Additional preview pages of the 2SB1015 datasheet.

📁 Similar Datasheet

  • 2SB1015 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1015 - PNP Transistor (INCHANGE)
  • 2SB1010 - PNP Silicon Transistor (Rohm)
  • 2SB1011 - Silicon PNP triple diffusion planar type Transistor (Panasonic Semiconductor)
  • 2SB1012 - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1012K - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1016 - SILICON PNP TRANSISTOR (Toshiba)
  • 2SB1016 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1016 - PNP Transistor (INCHANGE)
  • 2SB1017 - SILICON PNP TRANSISTOR (Toshiba)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text
: SILICON PNP TRIPLE DIFFUSED TYPE 1 2SB1015 AUDIO FREQUENCY POWER AMPLIFIE R APPLICATIONS. 10.3MAX. Unit in mm FEATURES . Low Collector Saturation Vol tage : VC E(sat)=-1.0V(Max.) at Ic=-3A, I B=-0.3A . Collector Power Dissipation : Pc=25W (Tc=25°C) . Complementary to 2SD1406 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current SYMBOL VCBO VcEO VEBO ic RATING -60 -60 -7 -3 UNIT V V V A 7-0 03.2±Q.2 /. 1 , *JJ ^frf "* r X < Hrf, o s to ... 1 1.4 + 0.25 0.76-0.15 ,| 1 2.54±0.25 J 1.2 55 M s CO 2.54±a25 mNoH C5c> + lO c5] 11 r1 12 3 < 5 c? _1 _ .:: ^ Base Current Collector Power Dissipation Ta=25°C Tc=25°C Junction Temperature IB PC T j -0.5 2.0 25 150 A 1. BASE 2.
