Datasheet4U Logo Datasheet4U.com

2SB1018 - SILICON PNP TRANSISTOR

Datasheet Summary

Features

  • . High Collector Current : Ic=-7A . Low Collector Saturation Voltage : V CE ( sat )=-0.5V(Max. ) at I C=-4A . Complementary to 2SD1411.

📥 Download Datasheet

Datasheet preview – 2SB1018

Datasheet Details

Part number 2SB1018
Manufacturer Toshiba
File Size 118.81 KB
Description SILICON PNP TRANSISTOR
Datasheet download datasheet 2SB1018 Datasheet
Additional preview pages of the 2SB1018 datasheet.

📁 Similar Datasheet

  • 2SB1018 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1018 - PNP Transistor (INCHANGE)
  • 2SB1018A - TRANSISTOR (Toshiba Semiconductor)
  • 2SB1018A - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1018A - PNP Transistor (INCHANGE)
  • 2SB1010 - PNP Silicon Transistor (Rohm)
  • 2SB1011 - Silicon PNP triple diffusion planar type Transistor (Panasonic Semiconductor)
  • 2SB1012 - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1012K - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1015 - Silicon PNP Transistor (Toshiba Semiconductor)
Other Datasheets by Toshiba
  • 2SB1016 - SILICON PNP TRANSISTOR
  • 2SB1017 - SILICON PNP TRANSISTOR
  • 2SB1019 - SILICON PNP TRANSISTOR
  • 2SB1024 - PNP Transistor
  • 2SB1034 - SILICON PNP TRANSISTOR
  • 2SB1641 - Silicon PNP Epitaxial Transistor
  • 2SB1682 - Silicon PNP Triple Diffused Type Transistor
  • 2SB502A - SILICON PNP TRANSISTOR

Full PDF Text Transcription

Click to expand full text

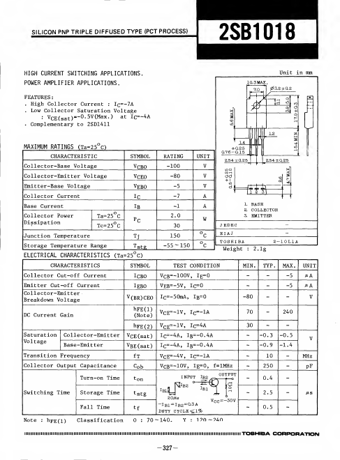

: SILICON PNP TRIPLE DIFFUSED TYPE (PCT PROCESS) HIGH CURRENT SWITCHING APPLICATIONS. Unit in mm POWER AMPLIFIER APPLICATIONS. FEATURES . High Collector Current : Ic=-7A . Low Collector Saturation Voltage : V CE ( sat )=-0.5V(Max.) at I C=-4A . Complementary to 2SD1411 MAXIMUM RATINGS (Ta= 25°C) CHARACTERISTIC SYMBOL Collector-Base Voltage VcBO Collector-Emitter Voltage VCEO Emitter-Base Voltage VEBO Collector Current ic Base Current IB Collector Power Dissipation Ta=25°C Tc=25°C PC Junction Temperature Tj Storage Temperature Range T stg ELECTRICAL CHARACTERISTICS (Ta=25°C) RATING UNIT -100 V -80 V -5 V -7 A -1 A 2.0 W 30 150 °C -55^150 °C 10.3MAX. 11* i K[ J no.2 IS rt en a 3 -H o id : 1.2 H1.4 + Q25 \ 0.76-0.15 1 ii J M55 S -i 2.54x0.
Published: |
