2SB1012 - Silicon PNP Epitaxial Transistor

Hitachi Semiconductor

Datasheet Details

Part number	2SB1012
Manufacturer	Hitachi Semiconductor
File Size	33.52 KB
Description	Silicon PNP Epitaxial Transistor
Datasheet	2SB1012 Datasheet
Additional preview pages of the 2SB1012 datasheet.

📁 Similar Datasheet

2SB1010 - PNP Silicon Transistor (Rohm)
2SB1011 - Silicon PNP triple diffusion planar type Transistor (Panasonic Semiconductor)
2SB1015 - Silicon PNP Transistor (Toshiba Semiconductor)
2SB1015 - SILICON POWER TRANSISTOR (SavantIC)
2SB1015 - PNP Transistor (INCHANGE)
2SB1015A - Silicon PNP Transistor (Toshiba Semiconductor)
2SB1016 - SILICON PNP TRANSISTOR (Toshiba)
2SB1016 - SILICON POWER TRANSISTOR (SavantIC)
2SB1016 - PNP Transistor (INCHANGE)
2SB1016A - Silicon PNP Transistor (Toshiba Semiconductor)

Other Datasheets by Hitachi Semiconductor

2SB1012K - Silicon PNP Epitaxial Transistor
2SB1000 - LOW FREQUENCY POWER AMPLIFIER
2SB1000A - LOW FREQUENCY POWER AMPLIFIER
2SB1001 - Silicon PNP Epitaxial Transistor
2SB1002 - Silicon PNP Transistor
2SB1025 - Silicon PNP Transistor
2SB1026 - Silicon PNP Transistor
2SB1027 - Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text

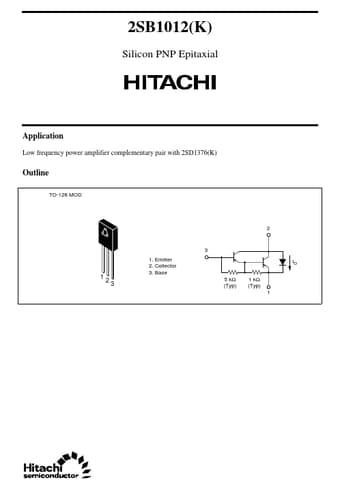

2SB1012(K) Silicon PNP Epitaxial Application Low frequency power amplifier complementary pair with 2SD1376(K) Outline TO-126 MOD 2 3 1. Emitter 2. Collector 3. Base ID 5 kΩ (Typ) 1 kΩ (Typ) 1 1 2 3 2SB1012(K) Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature C to E diode forward current Note: 1. Value at TC = 25°C Symbol VCBO VCEO VEBO IC I C(peak) PC * Tj Tstg ID* 1 1 Rating –120 –120 –7 –1.5 –3.0 20 150 –55 to +150 1.5 Unit V V V A A W °C °C A Electrical Characteristics (Ta = 25°C) Item Symbol Min –120 –7 — — 2000 — — — — — — — Typ — — — — — — — — — — 0.5 2.0 Max — — –100 –10 30000 –1.5 –2.0 –2.

Published: Mar 22, 2005 |
