2SB1002 - Silicon PNP Transistor

Hitachi Semiconductor

Datasheet Details

Part number	2SB1002
Manufacturer	Hitachi Semiconductor
File Size	31.76 KB
Description	Silicon PNP Transistor
Datasheet	2SB1002 Datasheet
Additional preview pages of the 2SB1002 datasheet.

📁 Similar Datasheet

2SB1002 - Silicon PNP Transistor (Renesas)
2SB1001 - Silicon PNP Transistor (Kexin)
2SB1001 - Silicon PNP Transistor (Renesas)
2SB1005 - PNP Transistor (INCHANGE)
2SB1005 - SILICON POWER TRANSISTOR (SavantIC)
2SB1007 - PNP Transistor (INCHANGE)
2SB1007 - SILICON POWER TRANSISTOR (SavantIC)
2SB1008 - Epitaxial Planar PNP Silicon Transistor (Rohm)
2SB1009 - Epitaxial Planar PNP Silicon Transistor (Rohm)
2SB1009 - PNP Transistor (INCHANGE)

Other Datasheets by Hitachi Semiconductor

2SB1000 - LOW FREQUENCY POWER AMPLIFIER
2SB1000A - LOW FREQUENCY POWER AMPLIFIER
2SB1001 - Silicon PNP Epitaxial Transistor
2SB1012 - Silicon PNP Epitaxial Transistor
2SB1012K - Silicon PNP Epitaxial Transistor
2SB1025 - Silicon PNP Transistor
2SB1026 - Silicon PNP Transistor
2SB1027 - Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text

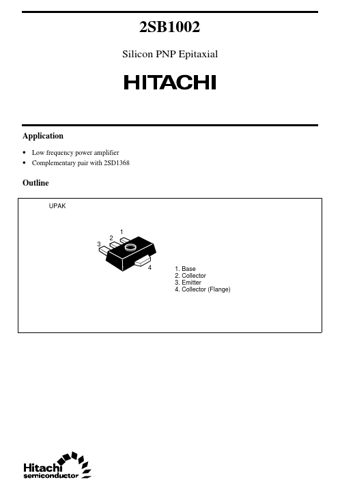

2SB1002 Silicon PNP Epitaxial Application • Low frequency power amplifier • Complementary pair with 2SD1368 Outline UPAK 1 3 2 4 1. Base 2. Collector 3. Emitter 4. Collector (Flange) 2SB1002 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) * PC * Tj Tstg 2 1 Ratings –70 –50 –6 –1 –1.5 1 150 –55 to +150 Unit V V V A A W °C °C Notes: 1. PW ≤ 10 ms, Duty cycle ≤ 20% 2. Value on the alumina ceramic board (12.5 × 20 × 0.
