2SB1018A - TRANSISTOR

📥 Download Datasheet

Datasheet preview – 2SB1018A

Datasheet Details

Part number 2SB1018A
Manufacturer Toshiba Semiconductor
File Size 203.41 KB
Description TRANSISTOR
Datasheet download datasheet 2SB1018A Datasheet
Additional preview pages of the 2SB1018A datasheet.

📁 Similar Datasheet

  • 2SB1018A - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1018A - PNP Transistor (INCHANGE)
  • 2SB1018 - SILICON PNP TRANSISTOR (Toshiba)
  • 2SB1018 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1018 - PNP Transistor (INCHANGE)
  • 2SB1010 - PNP Silicon Transistor (Rohm)
  • 2SB1011 - Silicon PNP triple diffusion planar type Transistor (Panasonic Semiconductor)
  • 2SB1012 - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1012K - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1015 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

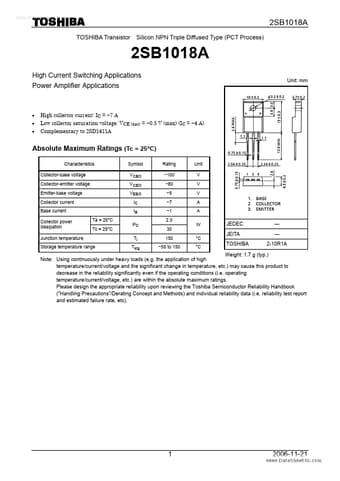

www.DataSheet4U.com 2SB1018A TOSHIBA Transistor Silicon NPN Triple Diffused Type (PCT Process) 2SB1018A High Current Switching Applications Power Amplifier Applications Unit: mm • • • High collector current: IC = −7 A Low collector saturation voltage: VCE (sat) = −0.5 V (max) (IC = −4 A) Complementary to 2SD1411A Absolute Maximum Ratings (Tc = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Ta = 25°C Tc = 25°C Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating −100 −80 −5 −7 −1 2.0 30 150 −55 to 150 Unit V V V A A W °C °C JEDEC JEITA TOSHIBA ― ― 2-10R1A Weight: 1.7 g (typ.) Note: Using continuously under heavy loads (e.g.
