2SB1015 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

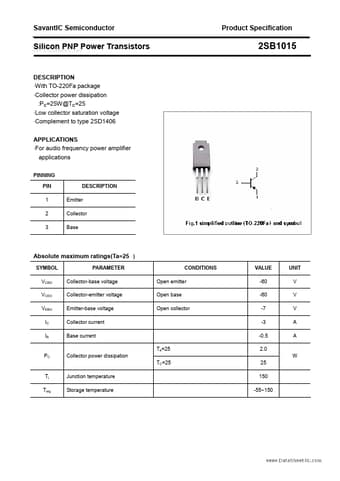

Datasheet preview – 2SB1015

Datasheet Details

Part number 2SB1015
Manufacturer SavantIC
File Size 190.95 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB1015 Datasheet
Additional preview pages of the 2SB1015 datasheet.

Product details

Description

With TO-220Fa package Collector power dissipation :PC=25W@TC=25 Low collector saturation voltage Complement to type 2SD1406 APPLICATIONS For audio frequency power amplifier applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Ta=25 PC Collector power dissipation TC=25 Tj Tstg Junction tem
