2SB871 Datasheet - SavantIC

2SB871 SILICON POWER TRANSISTOR

*With TO-220C package *High speed switching *Low collector saturation voltage APPLICATIONS *For low voltage switching applications PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol DESCRIPTION Absolute maximum ratings(Ta.

2SB871_SavantIC.pdf

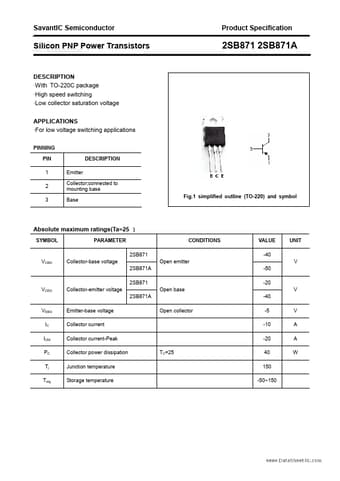

Preview of 2SB871 PDF
2SB871 Datasheet Preview Page 2 2SB871 Datasheet Preview Page 3

Datasheet Details

Part number:

2SB871

Manufacturer:

SavantIC

File Size:

123.54 KB

Description:

Silicon power transistor.
