2SB925 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

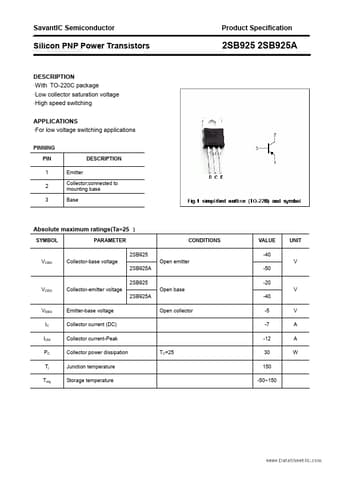

Datasheet preview – 2SB925

Datasheet Details

Part number 2SB925
Manufacturer SavantIC
File Size 123.10 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB925 Datasheet
Additional preview pages of the 2SB925 datasheet.

Product details

Description

With TO-220C package Low collector saturation voltage High speed switching APPLICATIONS For low voltage switching applications PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SB925 VCBO Collector-base voltage 2SB925A 2SB925 VCEO Collector-emitter voltage 2SB925A VEBO IC ICM PC Tj Tstg Emitter-base voltage Collector current (DC) Collector current-Peak Collector power dissipation Junction temper
