2SB925A, 2SB925 Datasheet - SavantIC

2SB925A SILICON POWER TRANSISTOR

*With TO-220C package *Low collector saturation voltage *High speed switching APPLICATIONS *For low voltage switching applications PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SB925 VCBO Collector-.

2SB925_SavantIC.pdf

This datasheet PDF includes multiple part numbers: 2SB925A, 2SB925. Please refer to the document for exact specifications by model.

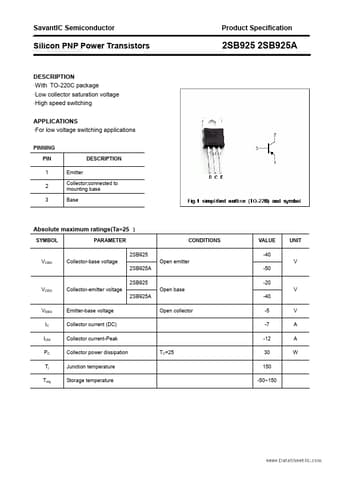

2SB925A Datasheet Preview Page 2 2SB925A Datasheet Preview Page 3

Datasheet Details

Part number:

2SB925A, 2SB925

Manufacturer:

SavantIC

File Size:

123.10 KB

Description:

Silicon power transistor.

Note:

This datasheet PDF includes multiple part numbers: 2SB925A, 2SB925.
Please refer to the document for exact specifications by model.
