2SC1004 Datasheet - SavantIC

2SC1004 SILICON POWER TRANSISTOR

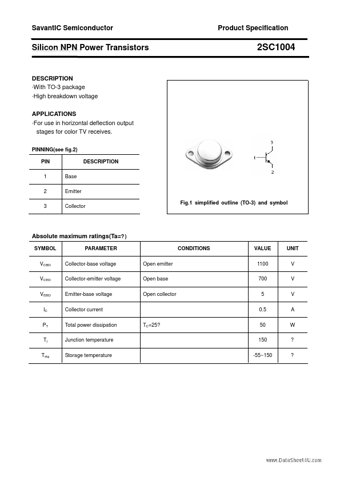

*With TO-3 package *High breakdown voltage APPLICATIONS *For use in horizontal deflection output stages for color TV receives. PINNING(see fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta=? ) SYMBOL VCBO VCEO VEBO.

2SC1004_SavantIC.pdf

Preview of 2SC1004 PDF
2SC1004 Datasheet Preview Page 2 2SC1004 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC1004

Manufacturer:

SavantIC

File Size:

187.07 KB

Description:

Silicon power transistor.
