2SC1113 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC1113

Manufacturer:

SavantIC

File Size:

161.97kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-66 package
  • High current capacity
  • Wide area of safe operation APPLICATIONS
  • For power ampli

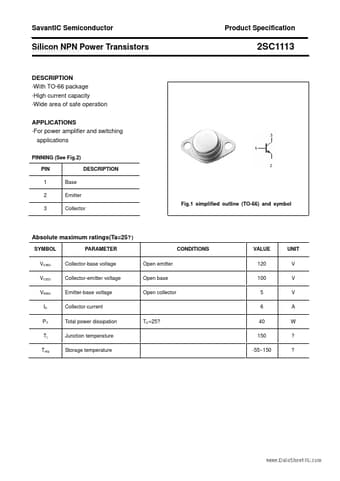

  • Datasheet Preview: 2SC1113 📥 Download PDF (161.97kb)
    Page 2 of 2SC1113 Page 3 of 2SC1113

    2SC1113 Application

    • Applications
    • For power amplifier and switching applications PINNING (See Fig.2) PIN 1 2 3 Base Emitter Fig.1 simplified outline (TO-66) and
