2SC1162 - Silicon NPN Transistor

📥 Download Datasheet

Datasheet preview – 2SC1162

Datasheet Details

Part number 2SC1162
Manufacturer Hitachi Semiconductor
File Size 29.63 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC1162 Datasheet
Additional preview pages of the 2SC1162 datasheet.

📁 Similar Datasheet

  • 2SC1162 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1162 - NPN Transistor (INCHANGE)
  • 2SC1162 - NPN Transistor (SeCoS)
  • 2SC1162 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC1162 - NPN Transistor (LGE)
  • 2SC1161 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1161 - NPN Transistor (INCHANGE)
  • 2SC1163 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1163 - NPN Transistor (INCHANGE)
  • 2SC1164 - SILICON NPN TRANSISTOR (Toshiba)
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text

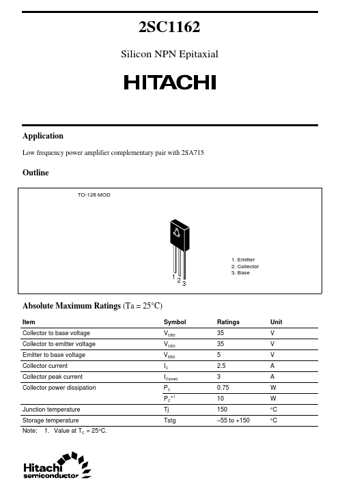

2SC1162 Silicon NPN Epitaxial Application Low frequency power amplifier complementary pair with 2SA715 Outline TO-126 MOD 1 1. Emitter 2. Collector 3. Base 2 3 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Symbol VCBO VCEO VEBO IC I C(peak) PC PC * Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Tj Tstg 1 Ratings 35 35 5 2.5 3 0.75 10 150 –55 to +150 Unit V V V A A W W °C °C 2SC1162 Electrical Characteristics (Ta = 25°C) Item Collector to base breakdown voltage Symbol V(BR)CBO Min 35 35 5 — 1 Typ — — — — — — 0.93 0.5 180 Max — — — 20 320 — 1.5 1.
