2SC1161 Datasheet - SavantIC

2SC1161 SILICON POWER TRANSISTOR

*With TO-66 package *Low collector saturation voltage APPLICATIONS *For low frequency high voltage power amplifier TV vertical deflection output applications. PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-66) and symbol DESCRIPTION Absolute maximum rat.

2SC1161_SavantIC.pdf

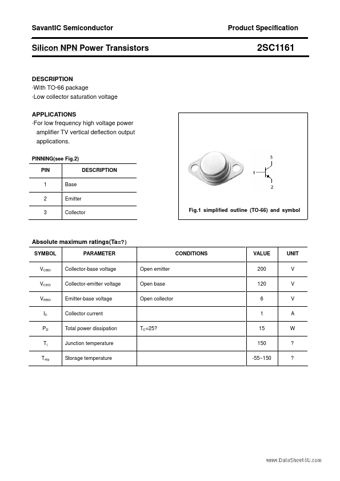

Preview of 2SC1161 PDF
2SC1161 Datasheet Preview Page 2 2SC1161 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC1161

Manufacturer:

SavantIC

File Size:

161.80 KB

Description:

Silicon power transistor.
