2SC1871A - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SC1871A

Datasheet Details

Part number 2SC1871A
Manufacturer SavantIC
File Size 141.91 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC1871A Datasheet
Additional preview pages of the 2SC1871A datasheet.

Product details

Description

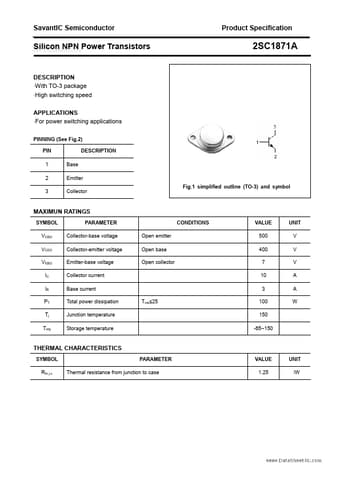

With TO-3 package High switching speed APPLICATIONS For power switching applications PINNING (See Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION MAXIMUN RATINGS SYMBOL VCBO VCEO VEBO IC IB PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Total power dissipation Junction temperature Storage temperature Tmb+25 Open emitter Open base Open collector CONDITIONS VALU
