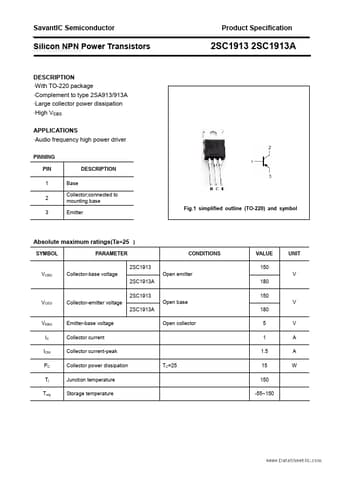

Part number: 2SC1913A
Manufacturer: SavantIC
File Size: 123.20KB
Download: 📄 Datasheet
Description: SILICON POWER TRANSISTOR
*Audio frequency high power driver
PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplif.
*With TO-220 package
*Complement to type 2SA913/913A
*Large collector power dissipation
*High VCEO APPLICATIONS
*Audio frequency high power driver
PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplifie.
Image gallery
