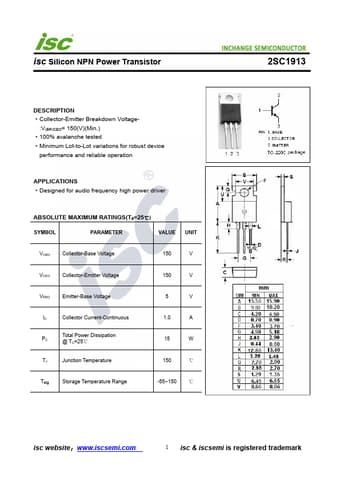

Part number: 2SC1913
Manufacturer: INCHANGE
File Size: 187.01KB
Download: 📄 Datasheet
Description: NPN Transistor
*Designed for audio frequency high power driver
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE UNIT
VC.
*Collector-Emitter Breakdown Voltage-
:V(BR)CEO= 150(V)(Min.)
*100% avalanche tested
*Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
*Designed for audio frequency high power driver
AB.
