2SC2810 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC2810

Manufacturer:

SavantIC

File Size:

117.24kb

Download:

📄 Datasheet

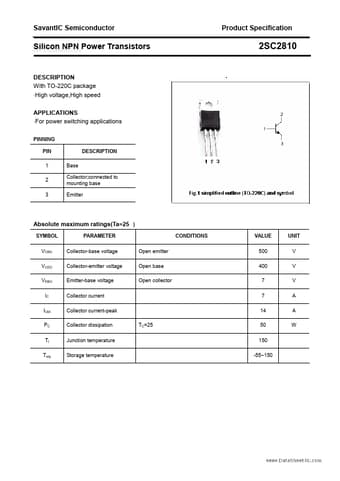

Description:

Silicon power transistor. With TO-220C package

High voltage,High speed APPLICATIONS

For power switching applications PINNING PIN 1 2 3 Base C

2SC2810 Application

• Applications
• For power switching applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute max
