2SC2809 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC2809

Manufacturer:

SavantIC

File Size:

162.02kb

Download:

📄 Datasheet

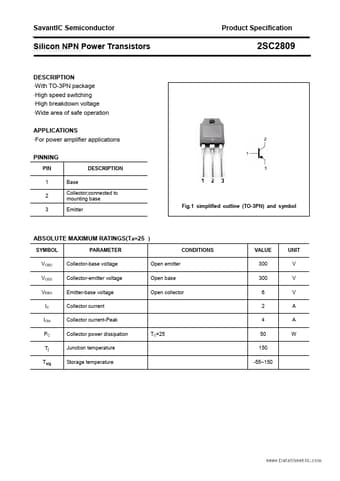

Description:

Silicon power transistor.

With TO-3PN package

High speed switching

High breakdown voltage

Wide area of safe operation APPLI

2SC2809 Application

• Applications
• For power amplifier applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline

TAGS

2SC2809

SavantIC
