2SC2816 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

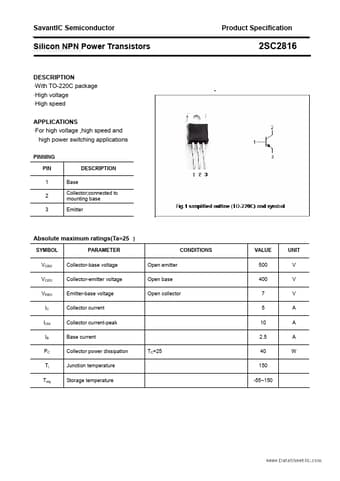

Datasheet preview – 2SC2816

Datasheet Details

Part number 2SC2816
Manufacturer SavantIC
File Size 159.74 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC2816 Datasheet
Additional preview pages of the 2SC2816 datasheet.

Product details

Description

With TO-220C package High voltage High speed APPLICATIONS For high voltage ,high speed and high power switching applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current Collector power dissipation Junction temperature Storage tempera
