2SC3025 - Silicon power Transistor

Product Overview

SavantIC

Datasheet Details

Part number	2SC3025
Manufacturer	SavantIC
File Size	142.67 KB
Description	Silicon power Transistor
Datasheet	2SC3025 Datasheet
Additional preview pages of the 2SC3025 datasheet.

Product details

Description

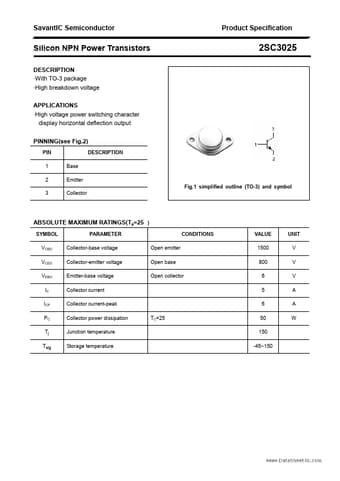

With TO-3 package High breakdown voltage APPLICATIONS High voltage power switching character display horizontal deflection output PINNING(see Fig.2) PIN 1 2 3 Base Emitter DESCRIPTION 2SC3025 Fig.1 simplified outline (TO-3) and symbol Collector ABSOLUTE MAXIMUM RATINGS(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICP PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Collector power dissipation Junction temper
