2SC3211 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

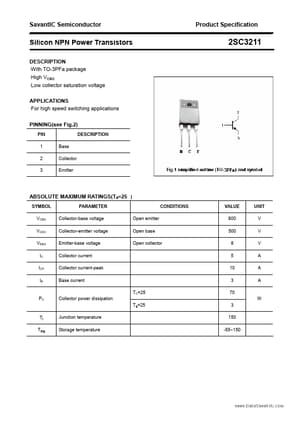

Datasheet preview – 2SC3211

Datasheet Details

Part number 2SC3211
Manufacturer SavantIC
File Size 143.96 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3211 Datasheet
Additional preview pages of the 2SC3211 datasheet.

Product details

Description

With TO-3PFa package High VCBO Low collector saturation voltage APPLICATIONS For high speed switching applications PINNING(see Fig.2) PIN 1 2 3 Base Collector Emitter DESCRIPTION ABSOLUTE MAXIMUM RATINGS(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICP IB PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current TC=25 PC Collector power dissipation Ta=25 Tj Tstg Junction temperature Storage temperature 3 150 -55
