2SC3229 - SILICON POWER TRANSISTOR

Datasheet Summary

Description

With TO-220F package High voltage: VCEO=300V(min) APPLICATIONS For color TV chroma output applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER

📥 Download Datasheet

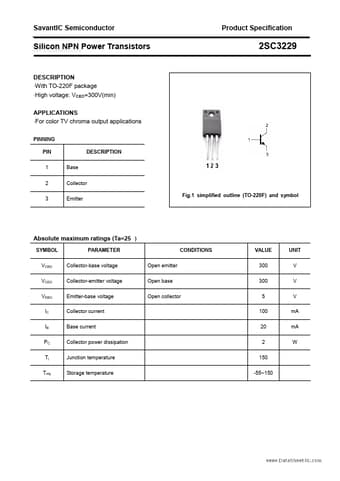

Datasheet preview – 2SC3229

Datasheet Details

Part number 2SC3229
Manufacturer SavantIC
File Size 230.97 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3229 Datasheet
Additional preview pages of the 2SC3229 datasheet.

📁 Similar Datasheet

  • 2SC3229 - NPN Transistor (INCHANGE)
  • 2SC3220 - High Voltage Ultra High Speed Switching Transistors (Shindengen Electric Mfg.Co.Ltd)
  • 2SC3221 - High Voltage Ultra High Speed Switching Transistors (Shindengen Electric Mfg.Co.Ltd)
  • 2SC3222 - High Voltage Ultra High Speed Switching Transistors (Shindengen Electric Mfg.Co.Ltd)
  • 2SC3223 - NPN Transistor (INCHANGE)
  • 2SC3225 - Silicon NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SC3228 - TRANSISTOR (Korea Electronics)
  • 2SC3200 - SILICON NPN TRANSISTOR (Korea Electronics)
  • 2SC3201 - SILICON NPN TRANSISTOR (Korea Electronics)
  • 2SC3202 - SILICON NPN TRANSISTOR (Korea Electronics)
Other Datasheets by SavantIC

Full PDF Text Transcription

Click to expand full text
SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors 2SC3229 DESCRIPTION ·With TO-220F package ·High voltage: VCEO=300V(min) APPLICATIONS ·For color TV chroma output applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature Open emitter Open base Open collector CONDITIONS VALUE 300 300 5 100 20 2 150 -55~150 UNIT V V V mA mA W SavantIC Semiconductor www.DataSheet4U.
