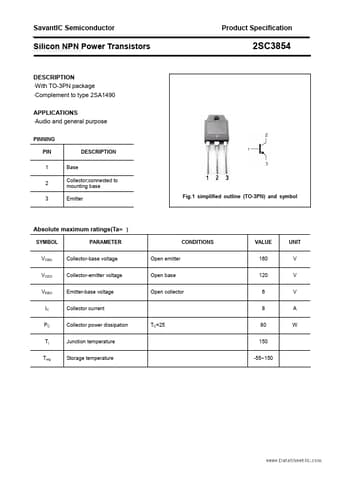

·With TO-3PN package ·Complement to type 2SA1490 APPLICATIONS ·Audio and general purpose PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25 Open emitter Open base Open collector CONDITIONS VALUE 160 120 6 8 80 150 -55~150 UNIT V V V A W SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors CHARACTERISTICS Tj=25 unless otherwise specified PARAMETER Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector-emitter saturation voltage Collector cut-off current Emitter cut-off current DC current gain Transition frequency CONDITIONS IC=50mA ;IB=0 IE=1mA ;IC=0 IC=3A;
IB=0.3A VCB=160V;
IE=0 VEB=6V;
SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors.
