2SC4020 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

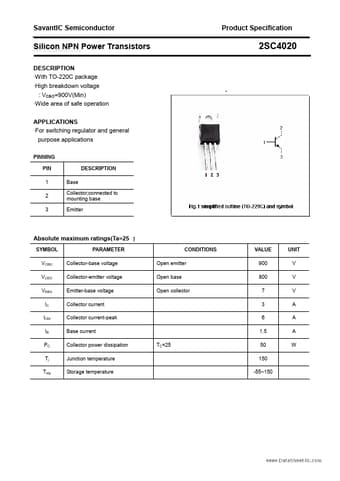

Datasheet preview – 2SC4020

Datasheet Details

Part number 2SC4020
Manufacturer SavantIC
File Size 126.12 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC4020 Datasheet
Additional preview pages of the 2SC4020 datasheet.

Product details

Description

With TO-220C package High breakdown voltage : VCBO=900V(Min) Wide area of safe operation APPLICATIONS For switching regulator and general purpose applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current Collector power dissipation Ju
