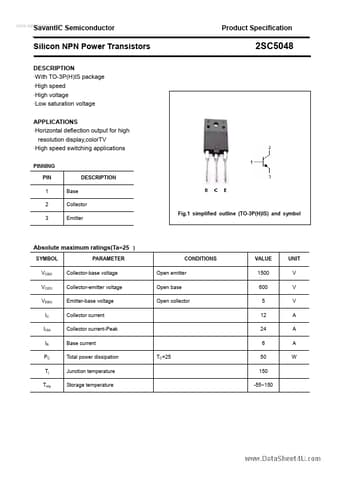

2SC5048 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC5048

Manufacturer:

SavantIC

File Size:

308.29kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-3P(H)IS package

High speed

High voltage

Low saturation voltage APPLICATIONS

Hori

2SC5048 Application

• Applications
• Horizontal deflection output for high resolution display,colorTV
• High speed switching applications PINNING PIN 1 2 3
