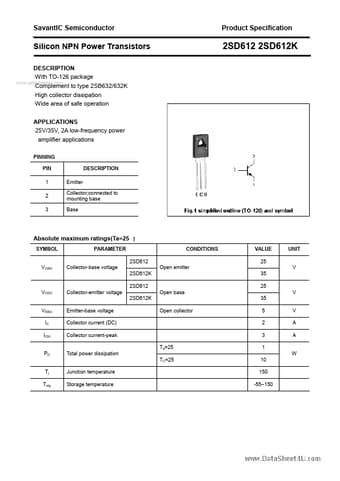

2SD612K Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SD612K

Manufacturer:

SavantIC

File Size:

191.79kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-126 package www.datasheet4u.com

Complement to type 2SB632/632K

High collector dissipation

2SD612K Application

• Applications
• 25V/35V, 2A low-frequency power amplifier applications PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base DES
