A1142 Datasheet, Transistors, SavantIC

PDF File Details

Part number:

A1142

Manufacturer:

SavantIC

File Size:

135.46kb

Download:

📄 Datasheet

Description:

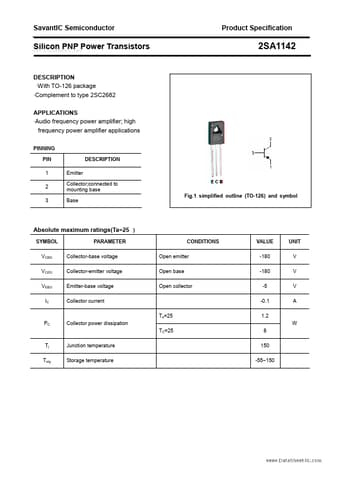

Silicon pnp power transistors.

With TO-126 package

Complement to type 2SC2682 APPLICATIONS

Audio frequency power amplifier; high frequen

A1142 Application

• Applications
• Audio frequency power amplifier; high frequency power amplifier applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector
